Product Summary

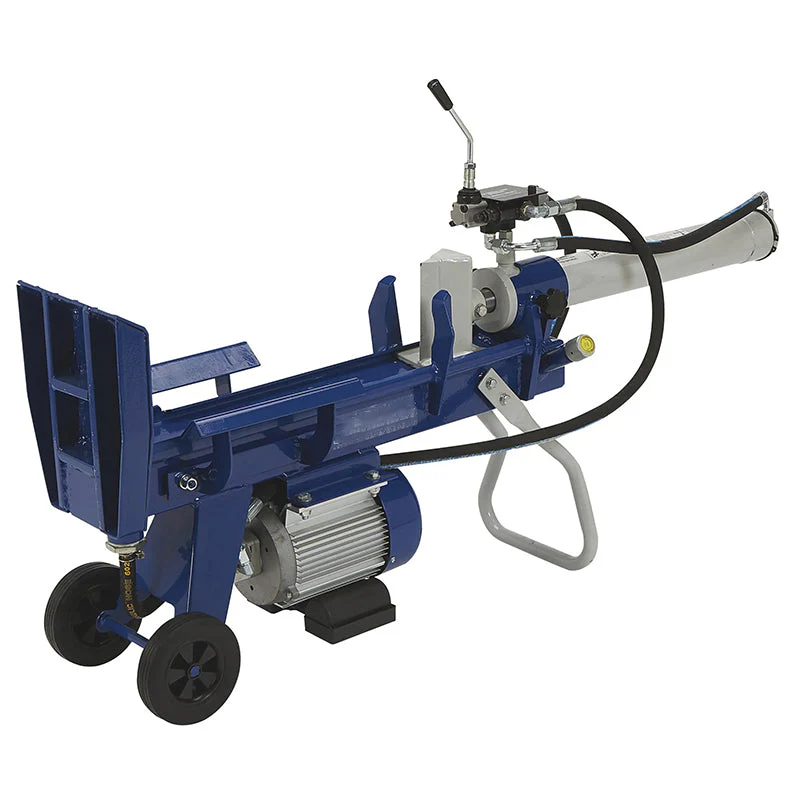

This Horizontal/Vertical Electric Log Splitter quickly and easily switches from horizontal to vertical operation. saving time and effort when splitting large. heavy logs. Delivers 8 tons of maximum splitting force that powers through logs up to 20 1/2in.L x 12in. dia.
What's Included
- (1) Horizontal/vertical electric log splitter
Product Manual
Features + Benefits
- Powerful 8-ton maximum splitting force
- Smooth. powerful 15 Amp. 120V. 2300 Watt. 60 Hz. 3 HP copper-wire electric motor provides extended service life
- Built-in log cradle catches each piece as it is split. eliminating unnecessary stooping and bending to gather split wood
- Pivoting design quickly and easily changes from horizontal to vertical position to match your splitting needs
- 6in. tires add portability
- 2 3/4in. dia. cylinder (inner dia.) and 3.2in. x 2.7in. x 6in. wedge
- For use with logs up to 20 1/2in.L x 12in. dia.
Key Specs
| Item# | 66716 |
| Brand |
| Manufacturer's Warranty | 2 year Limited Warranty |
| Ship Weight | 169.0 lbs |
| Product Type | Horizontal/vertical splitter |
| Ram Force (Tons) | 8 |
| Max. Log Size L x W (in.) | 20 1/2 x 12 |
| Continuous Force (Tons) | 8 |
| Motor | 120V. 60Hz. 2.300W. 15A |
| Horsepower | 3 |
| Wedge | 3.2 x 2.7 x 6 in. |
| Cylinder | 2 3/4 in. (inner dia.) |
| Pump | 5.55 x 10-4 gal. |
| Max. PSI | 2.950 |
| Oil Reservoir (gal.) | 1.2 |
| Hoses | 4 pcs. |
| Log Cradle | Yes |
| Tire Size | 6 in. |
| Dimensions L x W x H (in.) | 56 x 11 x 30 |
| Product Weight | 156 |
